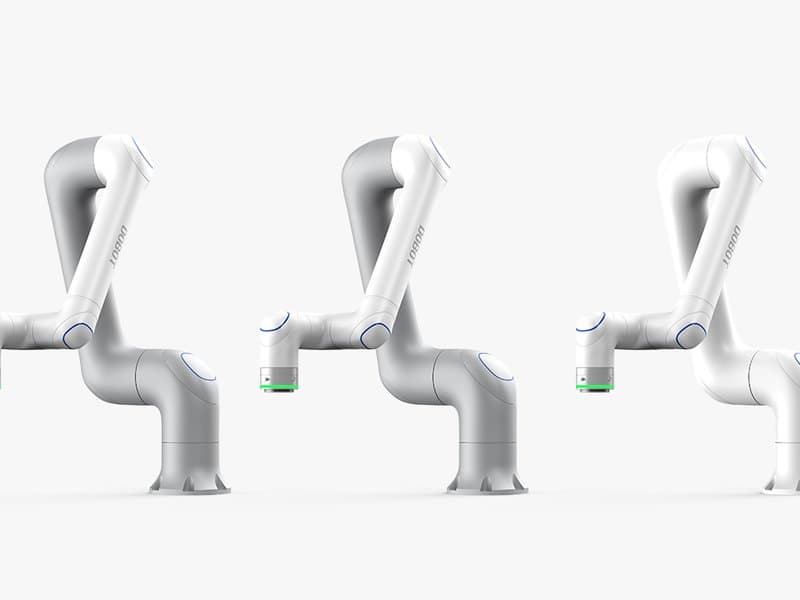

DOBOT CR20A Robotic Arm
by Dobot
Contact for Price
DOBOT CR20A breaks through the payload limit to 20 kg, meeting the demands of heavy-duty picking, packing, palletizing and welding in various industries.
Specifications
| Weight | 73 kg |
| Maximum Payload | 20 kg |
| Working Radius | 1,700 mm |
| Maximum Speed of TCP | 2,000 mm/s |
| Maximum Joint Speed | 120° /s |
| J3 | ±165° |
| J4 ～ J6 | 180° /s |
| Range of Motion | ±360° |
| I/O Ports | 24V, Rated 2A, Max 3A |
| Ports | 2 connectors, RS485/AI, 2 x DO, 2 x DI |
| Repeatability | ±0.05 mm |
| IP Rating | IP54 |
| Noise | ≤ 70 dB |
| Working Environment | 0° ～ 50° C |
| Installation Orientation | Upright |
| Cable Length to Controller | 6 m |
| Materials | Carbon steel, aluminum alloy, ABS plastic |
Key Features
User-friendly Design for Faster Deployment
More Possibilities with High Payload and Wide Radius
24 Interface Ports for Greater Flexibility
High Protection Level for Safer Collaboration
Welding
Palletizing
Loading and Unloading
Assembly
